Wifi Adapter
ZP-600MF
- 600Mbps speed
- RTL 8811CU chipset
- Free driver
- 2.4GHz+5GHz Dual Frequency
- Product description: High Quality 600Mbps USB2.0 Wireless WiFi Adapter.

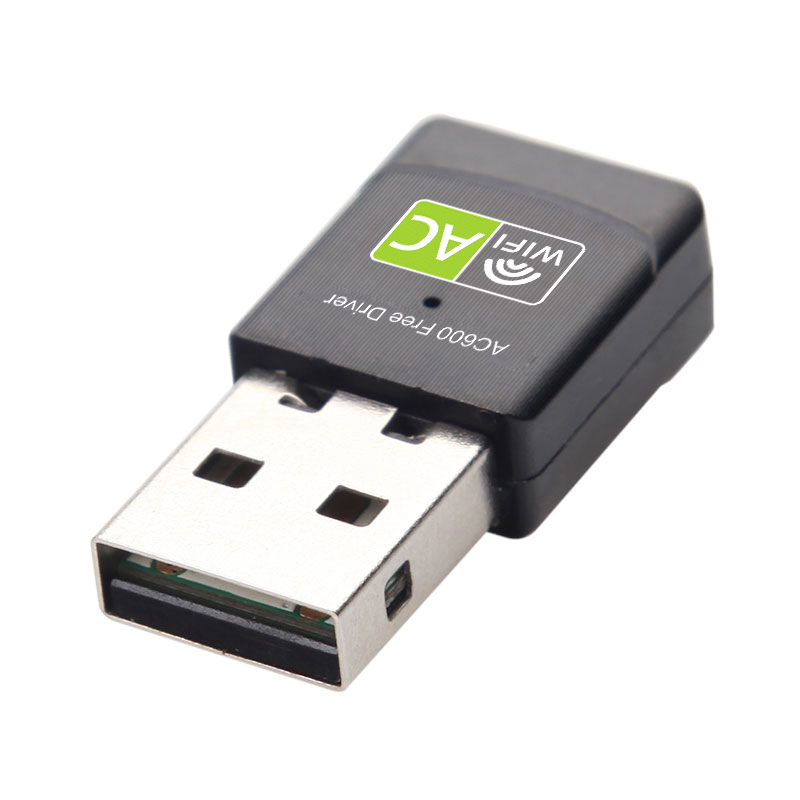

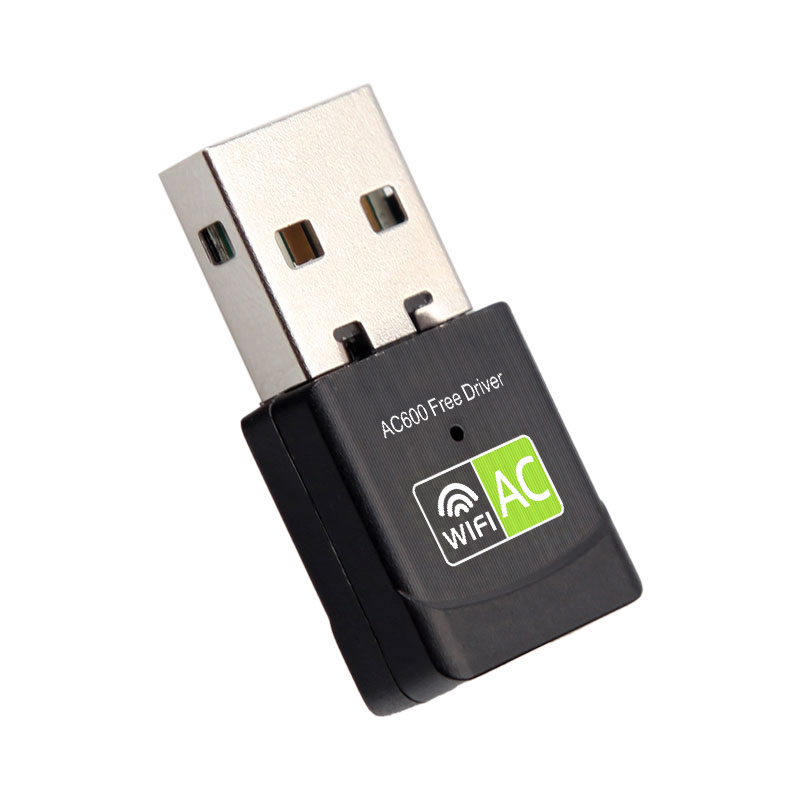

High Quality 600Mbps USB2.0 Wireless WiFi Adapter.
| Product information | |
| Hardware | |
| Main Chipset | Realtek 8811CU |
| Host interface | USB2.0, type A connector |
| LED | Link/ Activity |
| RF | |
| Antennas | 90 degree rotatable 2dBi Omni antenna |
| Operation Frequency | 2412~2483.5 MHz |
| Typical Transmit Power (onboard value) | 802.11b (CCK) 11Mbps: 18+/-1dBm |
| 802.11g (OFDM) 54Mbps: 15.5+/-1dBm | |
| 802.11n (HT20atMCS7), 14+/-1dBm | |
| 802.11n (HT40atMCS7), 14+/-1dBm | |
| Receive Sensitivity | 802.11b: -88+/-1dBm at 11Mbps |
| 802.11g: -76+/-1dBm | |
| 802.11n (HT20), -72+/-1dBm | |
| 802.11n (HT40), -69+/-1dBm | |
| Software | |
| Operation System | Windows XP,Win7/8/8.1/10 ;Mac OS X |
| Security | WEP, WPA,WPA2,WAPI,QoS (802.11e andWMM), |
| Operation Conditions | |
| Voltage Range | DC 5.0 V ± 5% |
| Current Range | 140+/-5mA at 802.11g, 54Mbps; |
| 185+/-5mA at802.11b , 11Mbps | |
| Operating Temperature | -10°C - 60°C |
| Storage Temperature | -20°C - 80°C |
| Operating Humidity | RH 95% (Non-Condensing) |
| Storage Humidity | RH 95% (Non-Condensing) |
