PCI

ZP-300PE

PCI Express 300mbps
5dBi antenna
RTL8192 chipset
IEEE 802.11n,IEEE 802.11g,IEEE 802.11b

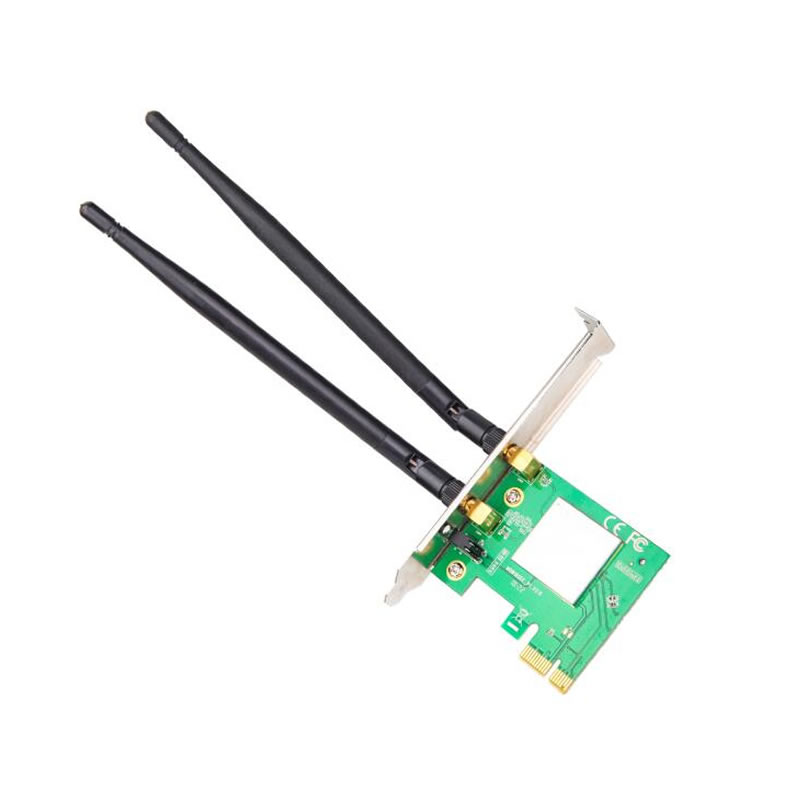

Product description: rtl8192 wireless 300mbps pci-express wifi adapter for desktop
INQUIRY

Wireless N - Speed & Range

Features

MIMO (multiple input, multiple output antennas) technology, it shows more excellent abilities of mitigating data loss over long distances and through obstacles in a small office or a large apartment, even in a steel-and-concrete building. Above all, you could easily pick up the wireless network during long-distance connection where legacy 11g products may not!

HARDWARE FEATURES
Interface	PCI Express(x1)
Dimensions ( W x D x H )	120.8x72.5x21mm
Antenna Type	Detachable Omni Directional (RP-SMA)
Antenna Gain	5dBi
WIRELESS FEATURES
Wireless Standards	IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency	2.400-2.4835GHz
Signal Rate	11n: Up to 300Mbps(dynamic)
	11g: Up to 54Mbps(dynamic)
	11b: Up to 11Mbps(dynamic)
Reception Sensitivity	270M: -68dBm@10% PER
	130M: -68dBm@10% PER
	108M: -73dBm@10% PER
	54M: -73dBm@10% PER
	11M: -89dBm@8% PER
	6M: -87dBm@10% PER
	1M: -90dBm@8% PER
Transmit Power	<20dBm(EIRP)
Wireless Modes	Ad-Hoc / Infrastructure mode
Wireless Security	Support 64/128 bit WEP, WPA-PSK/WPA2-PSK
Modulation Technology	DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM
OTHERS
Package Contents	Wireless Adapter
	2x Detachable Omni directional antenna
	Resource CD
System Requirements	Windows 8(32/64bits), Windows 7(32/64bits), Windows Vista(32/64bits), Windows XP(32/64bits)
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉)
	Storage Temperature: -40℃~70℃ (-40℉~158℉)
	Operating Humidity: 10%~90% non-condensing
	Storage Humidity: 5%~90% non-condensing
